Brief introduction of six-axis drilling and milling deep hole drilling

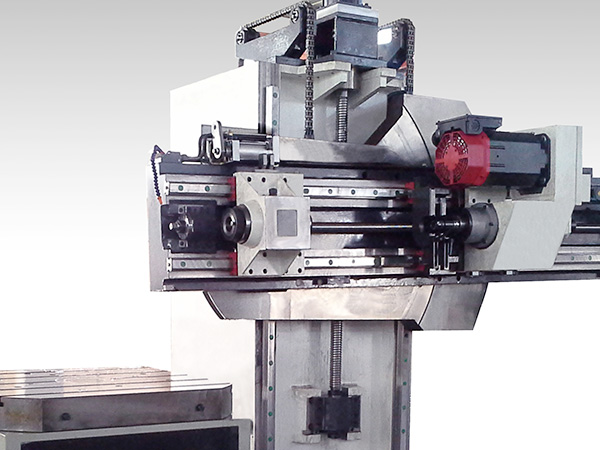

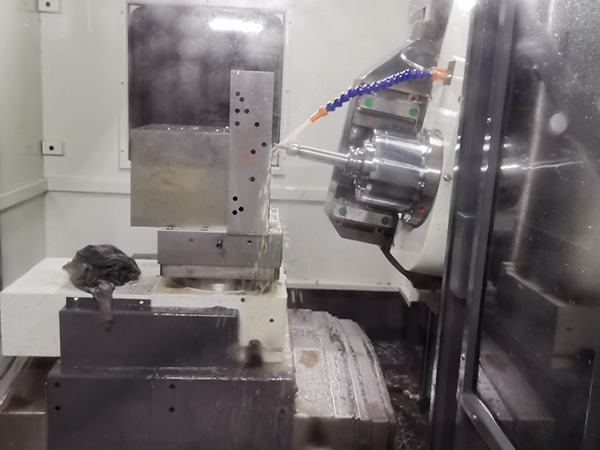

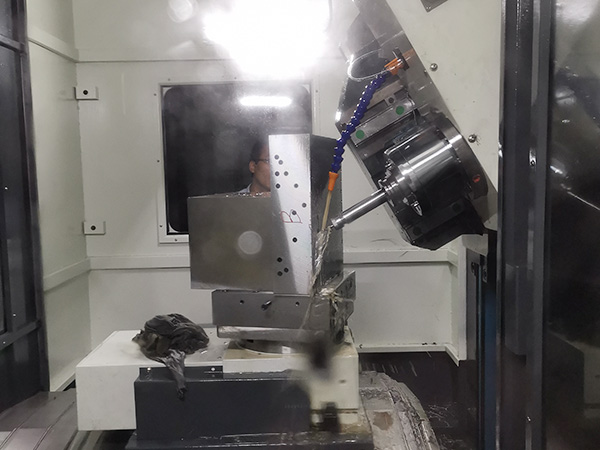

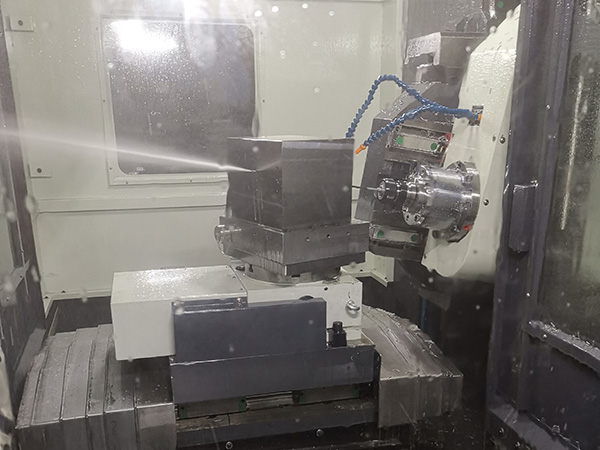

Multi shaft mold conveying water CNC milling machine is integrating milling and deep-hole processing and makes it possible to achieve multiple surfaces and working proce dures at one-time clamping.

APPLICATIONFIELD

Used in mold and mechanical manufacturing industry for milling of complex parts and deep-hole processing.

FEATURES

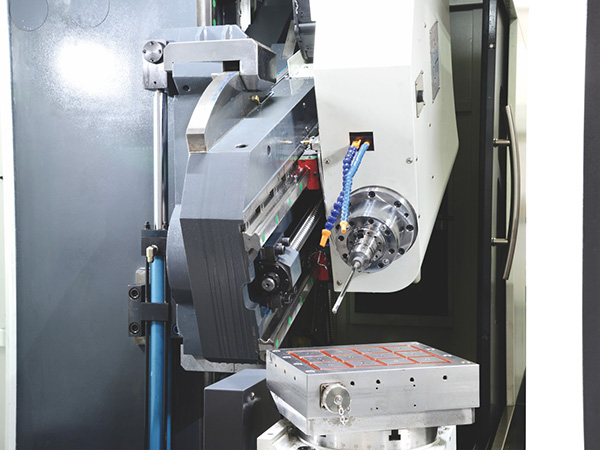

1.High precision rotation of main shaft (shaft A) up 20 degrees and down 30 degrees.Compound angle machining is realized.

2.The main shaft features powerful milling function (cutter disc may be installed).

3.Equipped with spary and absorb drill to achieve high efficiency and high precision,high fineness large-hole processing.

▸ Product Details

▸ Technical Parameters

	Project	Unit	RFD6ZX 0505-500	RFD6ZX 1512-1300	RFD6ZX 2515-1500	RFD6ZX 3015-1500
Processing tracel	X-axis (travel of work bench)	mm	500	1500	2500	3000
	Y-axis (travel of sliding plate)	mm	500	1200	1500	1500
	Z-axis (travel of vertical pillar)	mm	200	500	800	800
	A-axis (rotation of square guide way)	C°	Spindle head up 20 C°, down 30 C°
	Maximum drill depth of gun drill	mm	500	1300	1500	1500
	Maximum drill depth of spray and absorb drill	mm	-	-	1000(Matching)	-
	Distance from the center of main shaft to the surface of work bench	mm	0-500	0-1200	0-1500	0-1500
	processing
Maximum rotating of main shaft		rpm	6000	6000	4000	4000
Fast feeding		m/min	10	10	10	10
Maximum rotating speed of work banch		rpm	11	5.5	2.7	2.7
Maximum rotating speed of square guide way		C°	215	215	215	215
Dynamic parameter
	Motor of main shaft	kW	7.5	11/15 (30min)	18.5/22 (30min)	18.5/22 (30min}
	X-axis feeding motor	N.m	22	30	40	40
	Y-axis feeding motor	N.m	22	30	40	40
	Z-axis feeding motor	N.m	22	30	30	30
	W-axis feeding motor	N.m	12	12	22	22
	A-axis feeding motor	N.m	22	22	30	30
	B-axis feeding motor	N.m	12	22	40	40
	Total power of machine tool	kW	32	62	68	80
Diameter of drill hole
	Drilling diameter of gun drill	mm	Φ3-35	Φ3-35	Φ3-35	Φ3-35
	Drilling diameter of spray ard absorb drill	mm	-	-	Φ18-65(Matching)	Φ18-65
Other
	Pressure scope of cooling liquid	Mpa	2-11	2-11	2-11	Gun drill 2-11 Spray and absorb drill 1.0-1.7
	Flowrate scope of cooling	L/min	6-80	6-80	6-80	Gun drill 6-80 Spray and absorb drill 163
	Size of rotating table	mm	0250	1200X1000	2000X1600	2400X2000
	Load-bearing of work banch	T	0.35	5	15	20
	Taper of main shaft end		BT40	BT40	BT50	BT50
	External size of machine tool	mm	43OTX31WX3370	6300X4500X41OT	8200X6200X4600	83OTX7000X4WO
	Total weight of machine tool	T	9	18	35	45
	Machine tool control system		SYNTEC/FANUC

* The company's machine tools are continuously developed and improved, and specifications are subject to change without notice. The pictures in this document are for reference only, and the actual product samples shall prevail.
