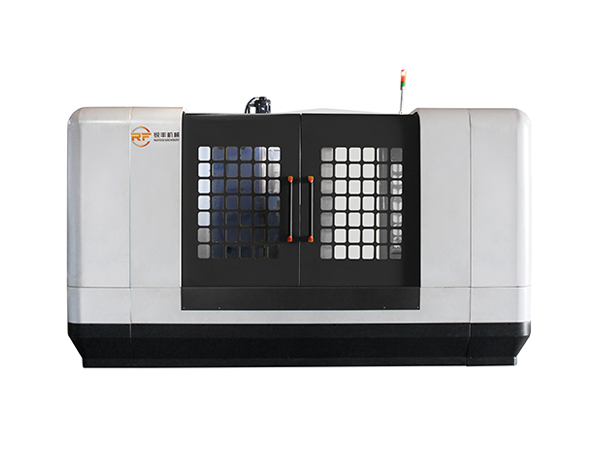

Macropore BTA spray and absorb drilling machine tool is the deep-hole processing machine tool integrating spray and absorb drill.knife-tablets drill and gun drill.

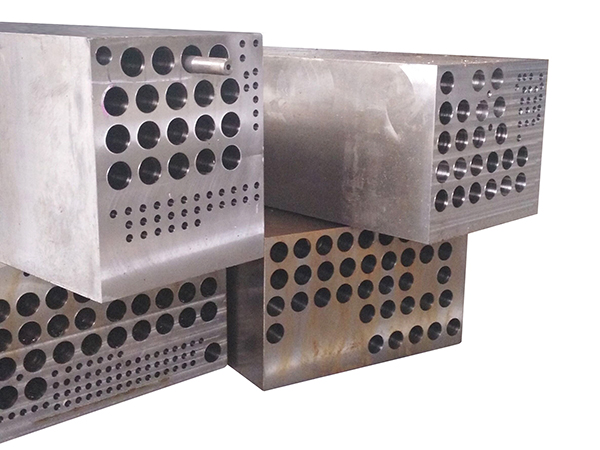

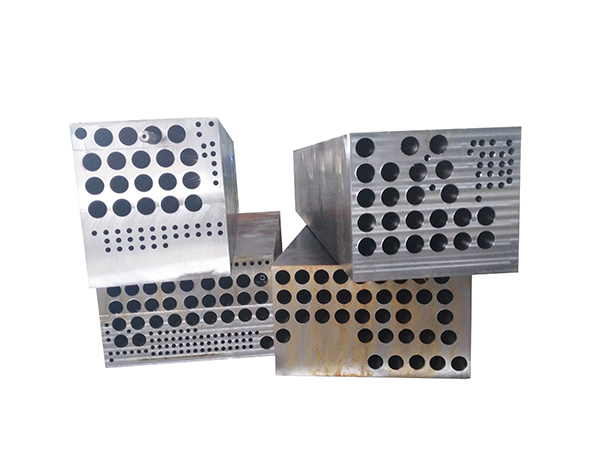

APPLICATIONFIELD
Mold,hydraulic, oil pipeline, nuclear power and other industries.
FEATURES
Large-hole process featuring high efficiency,high precision and high fineness.The fineness (Ra0.4~0.8).
Project | Unit | RFDD 1208-1200 | RFDD 1612-1500 | RFDD 2112-1500 | |
Processing tracel | |||||
Drilling diameter | mm | Φ3-Φ35(Gun drill) Φ18-Φ65(BTA/Jet suction drill) |
|||
X axis(Worktable travel) | mm | 1200 | 1600 | 2100 | |
Y axis(Skateboarding trip) | mm | 800 | 1200 | 1500 | |
Gun drilling maximum hole depth | mm | 1200 | 1500 | 1500 | |
Large drilling depth of jet suction drill silver | mm | 800 | 1000 | 1000 | |
Processing speed | |||||
Maximum speed of gun drill spindle | rpm | 4000 | 4000 | 4000 | |
Worktable X axis moving speed | m/min | 0-10000 | 0-10000 | 0-10000 | |
Slide table Y axis moving speed | m/min | 0-10000 | 0-10000 | 0-10000 | |
Feed speed of gun drill spindle | m/min | 0-3000 | 0-3000 | 0-3000 | |
Dynamic parameter | |||||
X axis feed motor | N.m | 22 | 30 | 30 | |
Y axis feed motor | N.m | 22 | 40 | 40 | |
Z axis feed motor | N.m | 22 | 22 | 22 | |
Drilling spindle motor | kW | 18.5/22 | 18.5/22 | 18.5/22 | |
The machine total power | kW | 54 | 60 | 60 | |
other | |||||
Coolant pressure range | Mpa | Gun drill 2-11 Jet suction drill 0.1-2 | |||
Coolant flow range | L/min | Gun drill 6-110 Jet suction drill 40-165 | |||
working desk size | mm | 1300X1000 | 1700X1200 | 2200X1200 | |
The workbench load | T | 8 | 10 | 12 | |
Machine tool overall dimensions | mm | 6300X3700X3100 | 6600X4500X3600 | 6600X5500X3600 | |
Machine weight | T | 13 | 21 | 24 | |
Machine tool control system | SYNTEC/MITSU6ISH/FANUC |
* The company's machine tools are continuously developed and improved, and specifications are subject to change without notice. The pictures in this document are for reference only, and the actual product samples shall prevail.
